New inverter range: Totally redesigned from the inside out

As ever Victron continue to surprise with an ever improving and expanding product range, so much so it is often difficult to keep pace with the rate of change! This is a good thing though and the purpose of this blog is to highlight and introduce you to the new, inexpensive, low power range of pure sinewave Phoenix Inverters.

The range is from 250VA to 375VA in 12, 24  and 48 Volt formats. Whilst these products have been quietly introduced over the last few months, production is now set to ramp up over the Summer to keep pace with demand, plus there will be higher power models coming later in the year – and remember this is a total redesign from the inside out and includes a number of very desirable features.

New design

Whilst this range continues to use the well proven full bridge with toroidal transformer there is a new enclosure, new electronics and new software. The units comprise of a steel chassis and plastic cover; electronically the inverters have improved dynamic output voltage stability. Last but not least is the range of communication and configuration options using VE.Direct. More of that in a moment.

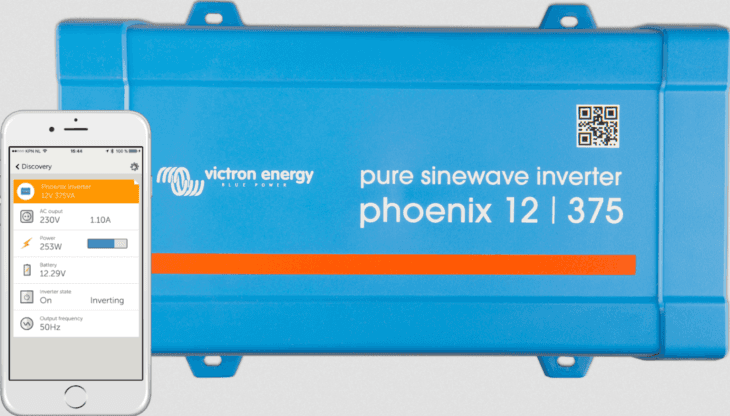

Firstly one of the things you’ll notice in the image above is that the inverter has a QR code on it. This is very handy to access data sheets and manuals, plus of course you can also show customers and friends more about the product, both quickly and easily. For more about this see the blogpost:

Inverter features

• Proven reliability using full bridge plus toroidal transformer topology
• High start-up power
• ECO mode
• Remote On/Off
• LED diagnosis
• Available with different output sockets
• Screw terminals
• Filax Automatic Transfer Switch option
• VE.Direct communication port

To learn more about these features, see the product datasheet which gives an explanation of each of these features.

Communication

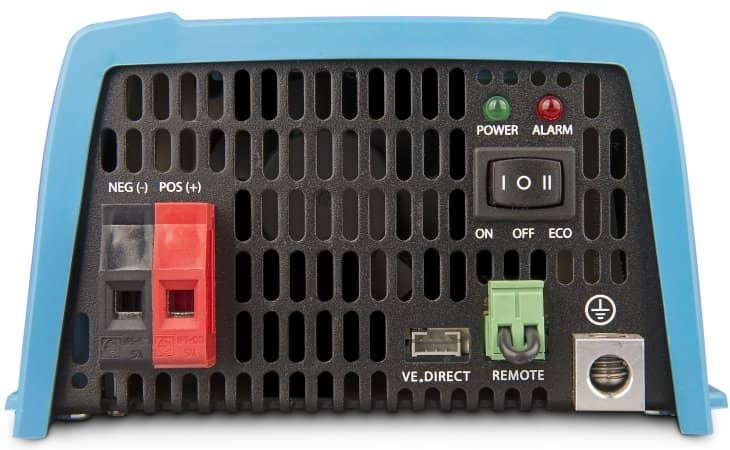

In the image above you’ll note a VE.Direct communication port. This can be connected in one of two ways to communicate with and monitor your inverter.

1. VE.Direct to USB interface
2. VE.Direct Bluetooth Smart dongle

Personally I’m a great fan of the Bluetooth Smart dongle option using VictronConnect. It really makes life easy. You can read more about this in the blogpost:

Whilst VictronConnect now supports Mac OS X & Windows PC, besides phones and tablets, please note the Windows PC version does not include Bluetooth support so that can only be used with the VE.Direct to USB interface.

Before installing VictronConnect please read the manual and make sure it is compatible with your device/platform: https://www.victronenergy.com/live/victronconnect:start

Configuration & Monitoring

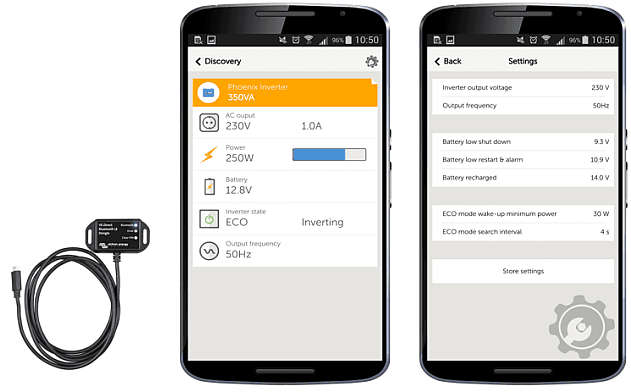

Using VictronConnect and the Bluetooth Smart dongle shown above (or a VE.Direct to USB interface cable) you can do the following:

Configuration:

• Low voltage alarm trip and reset levels
• Low voltage cut-off and restart levels
• Output voltage 210 – 245V
• Frequency 50Hz or 60Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In and output voltage and current alarms

Conclusion

We hope you enjoy the new inverter range and welcome your feedback. Whilst the new range does not come with a free chocolate Easter egg – at least we hope we’ve whetted your appetite. Happy Easter!

John Rushworth
